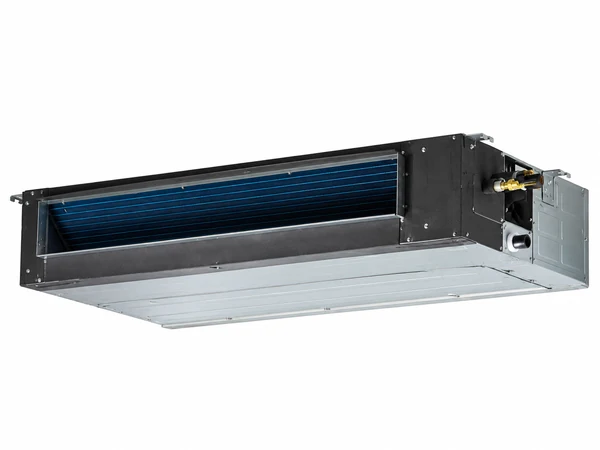

Voltas Fixed Speed Slim Duct AC – 1.5 to 2 Ton (Cooling Only)

Concealed fixed-speed duct AC with a slim indoor unit, hydrophilic coating, wired and wireless controls, and automatic restart. Available in 1.5 and 2 Ton capacities.

Category: Brand:
Enquire Now

The Voltas Fixed Speed Slim Duct AC is a concealed air conditioning solution designed to provide effective cooling while maintaining a clean and uncluttered interior appearance. Its compact, low-profile indoor unit is designed for installation within false ceilings, allowing conditioned air to be distributed through suitable ductwork and air outlets. This makes it a practical choice for offices, conference rooms, retail spaces, residential interiors and other areas where a discreet air conditioning installation is preferred. The system features a fixed-speed rotary compressor, hydrophilic-coated indoor heat exchanger, and support for wired and wireless remote operation. Automatic restart and an anti-dust air filter provide additional operating convenience.

Available in 1.5 Ton and 2 Ton capacities, this cooling-only slim duct range offers flexible options for smaller ducted air conditioning applications.

Key Features
  • Slim Duct Design: Compact indoor unit for concealed ceiling installations.
  • Wired & Wireless Control: Flexible remote operation.
  • Auto Restart: Convenient restart functionality.
  • Hydrophilic Coating: Protective fin treatment on the indoor coil.
  • Anti-Dust Filter: Helps capture airborne dust.
  • Silent Operation: Designed for controlled indoor noise.
  • Easy Maintenance: Compact design supports service access.
Brand

Voltas

Product Type

Fixed Speed Ductable AC

Capacity

1.5 Ton, 2 Ton

Set Model

DUFCT18KDoS4JJo1, DUFCT24KDoS4JJo1

Indoor/Outdoor Unit Model

DCFCT18KDoS4JJo1, DCFCT24KDoS4JJo1

Rated Cooling Capacity

5100 W, 6200 W

Rated Input Power

1588 W, 1985 W

EER

3.21 W/W, 3.12 W/W

Power Supply

230V / 1Ph / 50Hz

Rated Current

7.0 A, 8.8 A

Compressor

Rotary

Indoor Airflow

870 CMH, 910 CMH

Indoor Dimensions (W × H × D)

106.04 × 18.5 × 50.4 cm, 120.14 × 21.48 × 48.46 cm

Indoor Weight (Net/Gross)

19 / 23 kg, 29 / 33 kg

Outdoor Dimensions (W × H × D)

78 × 55 × 24.5 cm, 81.8 × 60 × 30.2 cm

Outdoor Weight (Net/Gross)

35 / 39 kg, 38 / 42 kg

Suction / Liquid Pipe

12.7 / 6.35 mm, 15.88 / 9.52 mm

Refrigerant

R32
